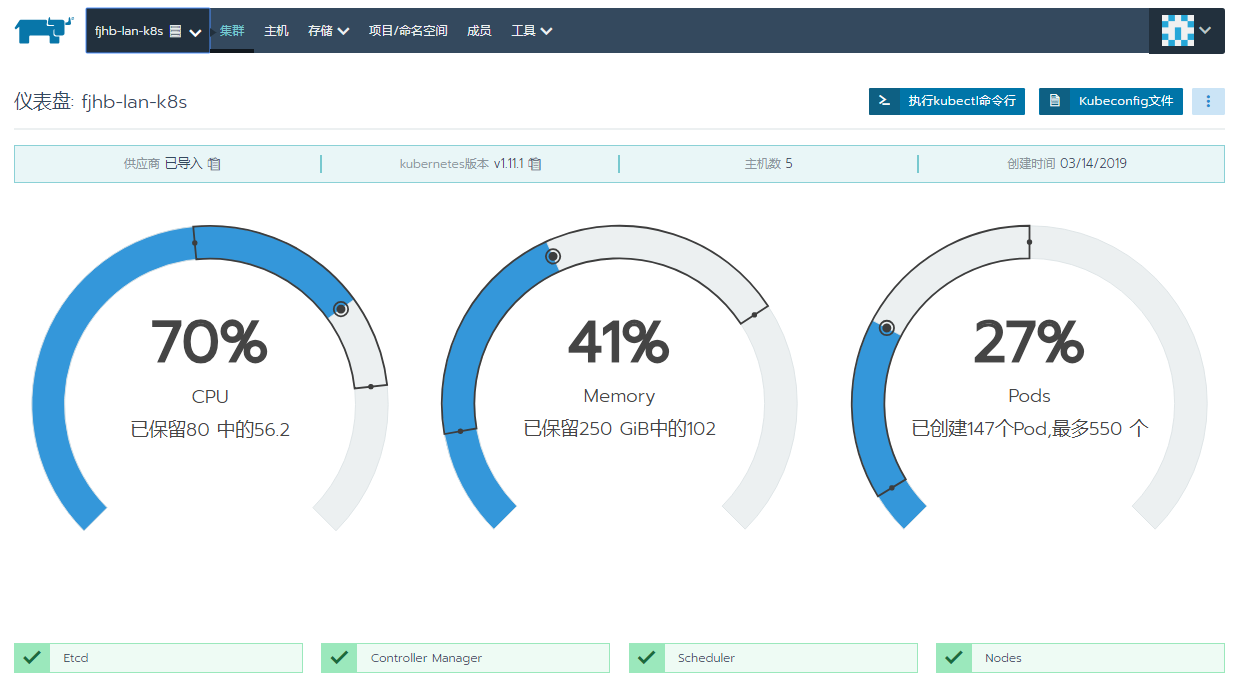

一、背景介绍 在使用纯手工维护yaml文件方式完成内网开发和两套测试环境和现网生成环境的核心微服务pod化之后。发现主要痛点如下：

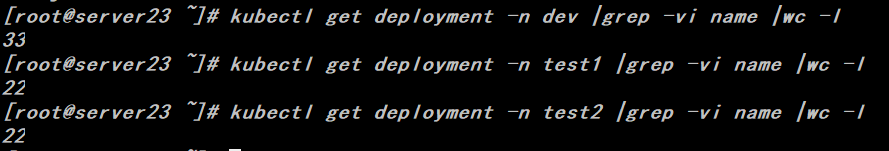

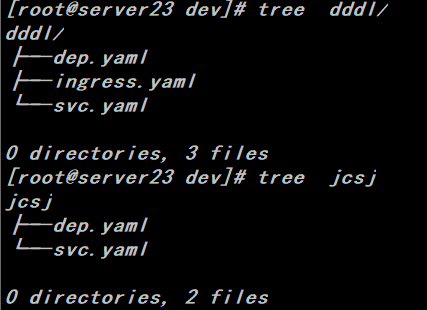

1、工作负载相关的yaml文件维护量巨大，且易出错。（目前内网共有77个工作负载）
2、研发人员对工作负载配置改动的需求比较频繁，例如修改jvm相关参数，增加initcontainer、修改liveness、readiness探针、亲和性与反亲和性配置等，这类的配置严重同质化。
3、每个namespace都存在环境变量、configmap、rbac、pv\pvc解耦类的配置，如果对应的配置未提前创建，则后续创建的工作负载无法正常工作。
随着第二阶段各平台模块的微服务化改造工作的推进，预计每个namespace会分别增加30-40个工作负载，因此需要维护的yaml文件将急剧扩展，手工维护已不现实。因此使用helm来维护k8s应用被提上议事日程。
关于helm的配置文件语法及服务端配置请参考官网手册：https://helm.sh/docs/
二、需求分析 1、公共配置类

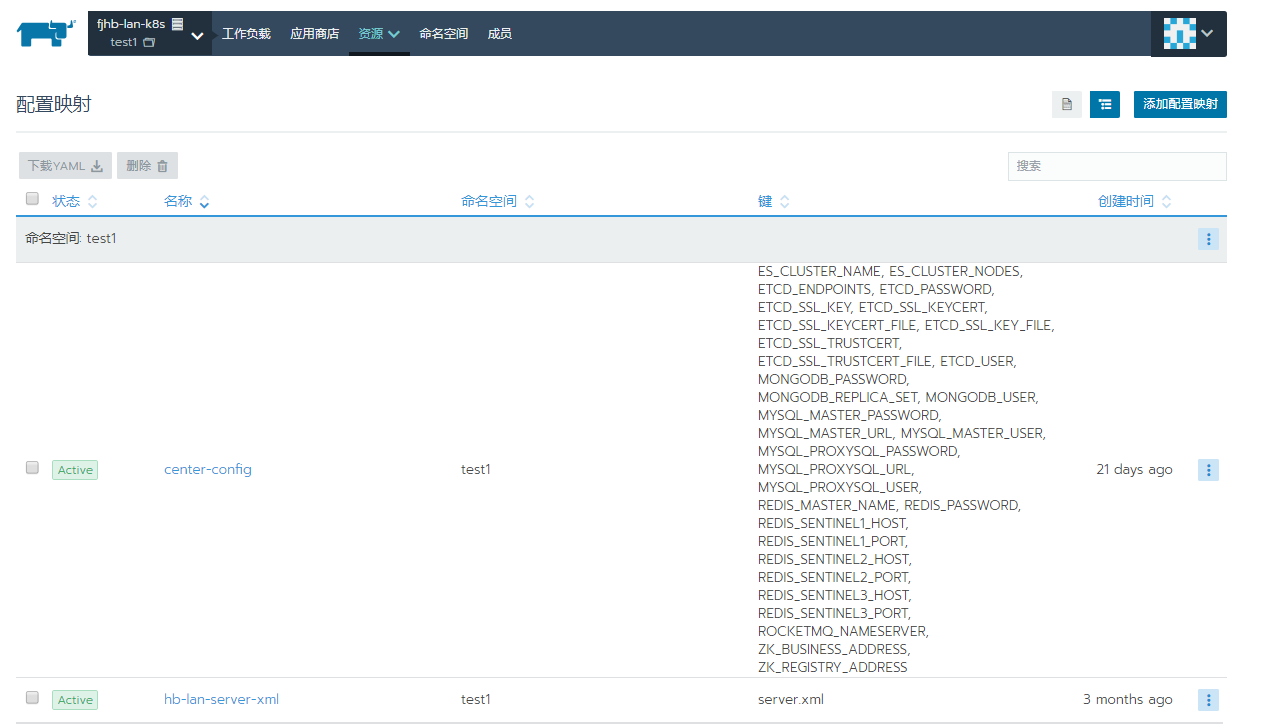

Configmap

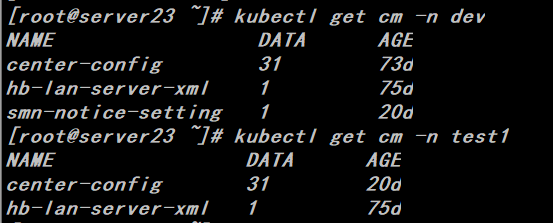

每个namespace至少有两个configmap，其中center-config存储了各个环境的mysql、mongodb、redis等基础公共服务的IP、用户名和密码、连接池配置信息等，我们通过集中配置解耦做到代码编译一次镜像，各个环境都能运行。

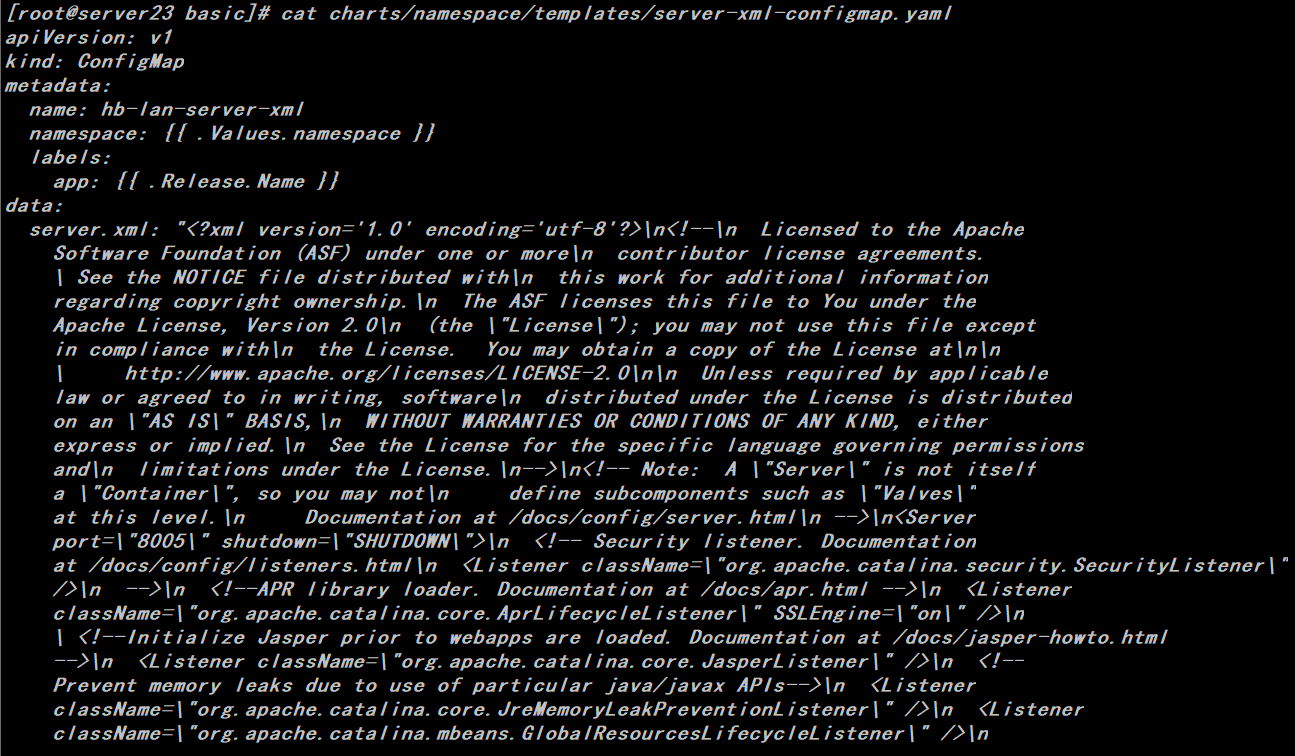

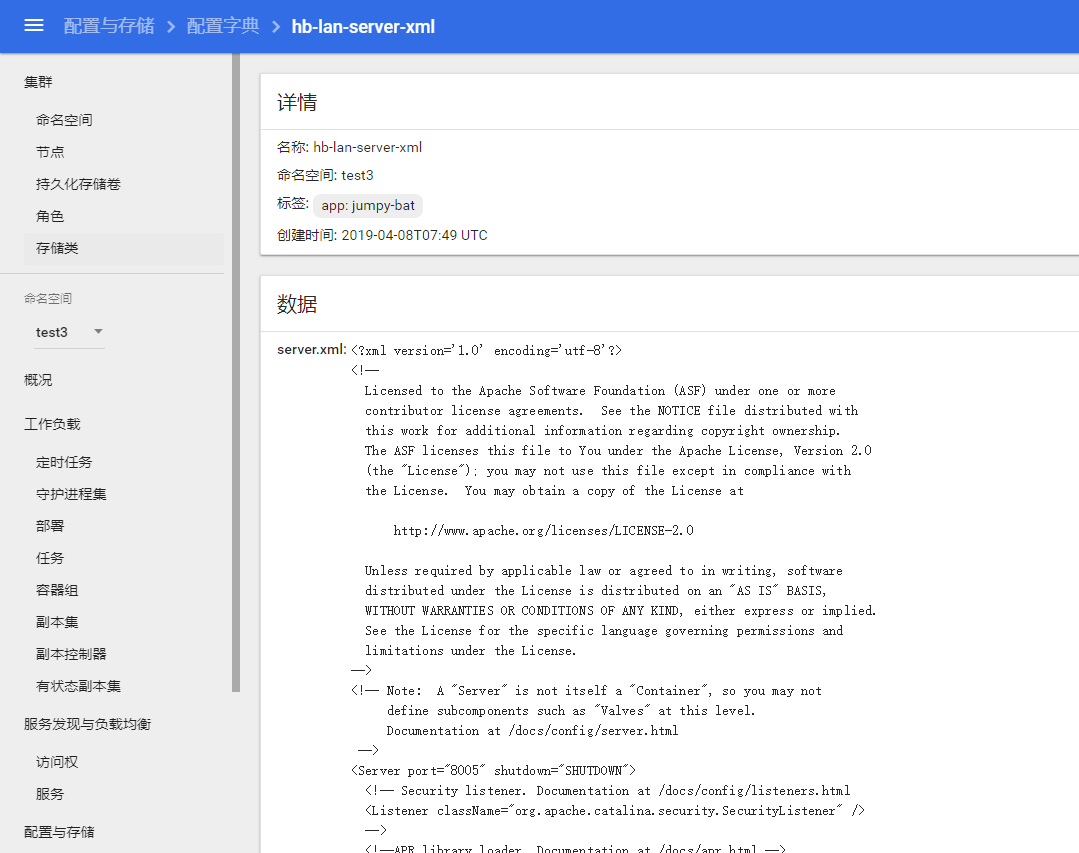

hb-lan-server-xml文件实际上就是tomcat下面的server.xml文件，由于早前代码上使用redis做登陆session，需要修改server.xml，因此需要对这个文件做解耦配置，后续创建的工作负载通过外挂的形式替换镜像层中的server.xml文件。

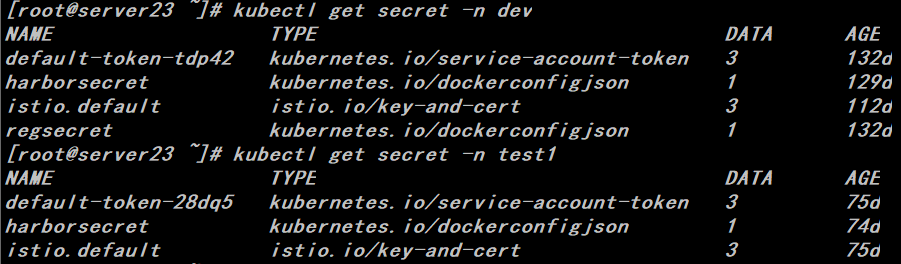

Secret
每个namespace都会存在harborsecret的token，顾名思义就是harbor仓库拉取镜像使用的权限信息，否则创建工作负载的时候会无法拉取镜像。

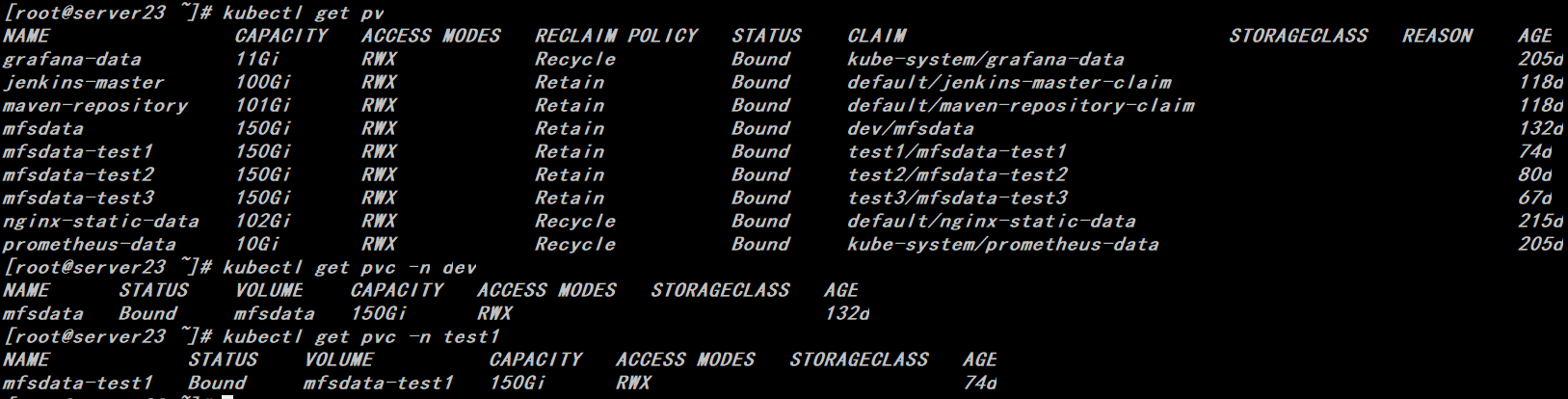

pv\pvc
每个namespace都有一个配套共享存储，用来统一存放用户上传的附件资源，内网环境我们通过nfs来实现。
rbac相关
因为应用程序会通过curl k8s的master来获取一些配置类的信息，如果没有做相应的rbac授权，访问会出现401，因此需要对每个namespace下的default sa用户做rbac授权。
2、工作负载类
工作负载目前统一为无状态工作负载，主要分为两类，一类需要对外暴露域名和端口，另一类程序内部通过zk进行dubbo调用
三、配置helm与测试 1、公共配置类

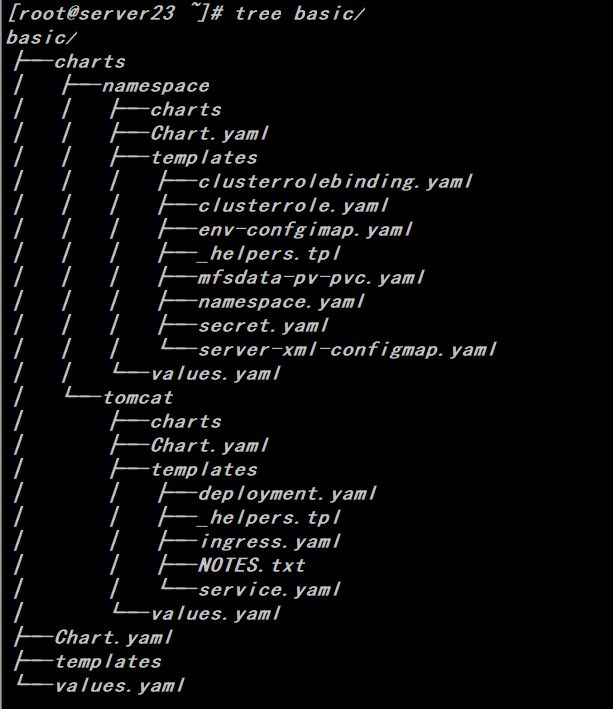

# helm create basic
# cd basic
# helm create namespace
# rm -rf charts/namespace/templates/* |
# cat charts/namespace/values.yaml
# Default values for namespace.
# This is a YAML-formatted file.
# Declare variables to be passed into your templates.
namespace: default |
# cat charts/namespace/templates/namespace.yaml
apiVersion: v1
kind: Namespace
metadata:
name: {{ .Values.namespace }} |
# cat charts/namespace/templates/env-confgimap.yaml
apiVersion: v1
kind: ConfigMap
metadata:
name: center-config
namespace: {{ .Values.namespace }}
labels:
app: {{ .Release.Name }}
data:
ES_CLUSTER_NAME: hbjy6_dev
ES_CLUSTER_NODES: 192.168.1.19:9500
ETCD_ENDPOINTS: https://192.168.1.11:2379,https://192.168.1.17:2379,https://192.168.1.23:2379
ETCD_PASSWORD: ""
ETCD_SSL_KEY: ""
ETCD_SSL_KEY_FILE: /mnt/mfs/private/etcd/client-key.pem
ETCD_SSL_KEYCERT: ""
ETCD_SSL_KEYCERT_FILE: /mnt/mfs/private/etcd/client.pem
ETCD_SSL_TRUSTCERT: ""
ETCD_SSL_TRUSTCERT_FILE: /mnt/mfs/private/etcd/ca.pem
ETCD_USER: ""
MONGODB_PASSWORD: xxxx
MONGODB_REPLICA_SET: 192.168.1.21:37017,192.168.1.15:57017,192.168.1.16:57017
MONGODB_USER: ROOT
MYSQL_MASTER_PASSWORD: "xxxxx"
MYSQL_MASTER_URL: 192.168.1.20:3306
MYSQL_MASTER_USER: root
MYSQL_PROXYSQL_PASSWORD: "xxxxx"
MYSQL_PROXYSQL_URL: 192.168.1.20:1234
MYSQL_PROXYSQL_USER: root
REDIS_MASTER_NAME: sigma-server1
REDIS_PASSWORD: "xxxxx"
REDIS_SENTINEL1_HOST: 192.168.1.20
REDIS_SENTINEL1_PORT: "26379"
REDIS_SENTINEL2_HOST: 192.168.1.21
REDIS_SENTINEL2_PORT: "26379"
REDIS_SENTINEL3_HOST: 192.168.1.22
REDIS_SENTINEL3_PORT: "26379"
ROCKETMQ_NAMESERVER: 192.168.1.20:9876
ZK_BUSINESS_ADDRESS: 192.168.1.20:2181,192.168.1.21:2181,192.168.1.22:2181
ZK_REGISTRY_ADDRESS: 192.168.1.20:2181,192.168.1.21:2181,192.168.1.22:2181 |
# cat charts/namespace/templates/secret.yaml
apiVersion: v1
kind: Secret
metadata:
name: harborsecret
namespace: {{ .Values.namespace }}
type: kubernetes.io/dockerconfigjson
data:
.dockerconfigjson:eyJhdXRocyI6eyJoYXJib3IuNTlpZWR1LmNvbSI6eyJ1c2VybmFtZSI6ImFkbWluIiwicGFzc3dvcmQiOiJIYXJib3IxMjM0NSIsImF1dGgiOiJZV1J0YVc0NlNHRnlZbTl5TVRJek5EVT0ifX19 |
# cat charts/namespace/templates/mfsdata-pv-pvc.yaml
apiVersion: v1
kind: PersistentVolume
metadata:
name: mfsdata-{{ .Values.namespace }}
spec:
capacity:
storage: 150Gi
accessModes:
- ReadWriteMany
nfs:
path: /mnt/mfs
server: 192.168.1.20
persistentVolumeReclaimPolicy: Retain
---
kind: PersistentVolumeClaim
apiVersion: v1
metadata:
name: mfsdata-{{ .Values.namespace }}
namespace: {{ .Values.namespace }}
spec:
accessModes:
- ReadWriteMany
resources:
requests:
storage: 150Gi |

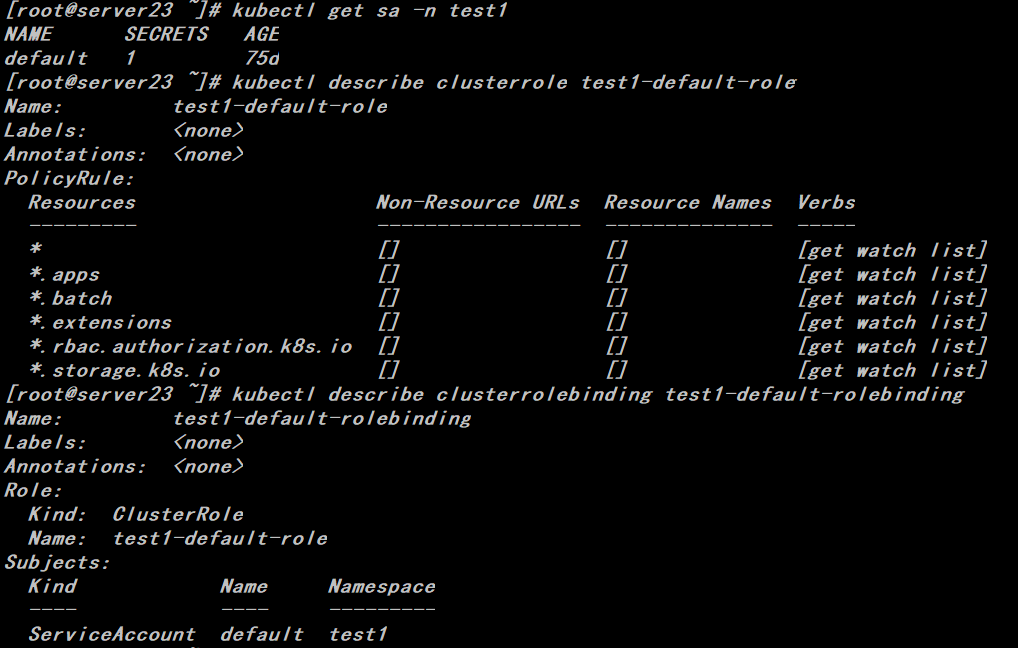

# cat charts/namespace/templates/clusterrole.yaml
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
name: {{ .Release.Name }}-{{ .Values.namespace }}-role
labels:
app: {{ .Release.Name }}
rules:
- apiGroups: [""]
resources: ["*"]
verbs: ["get","watch","list" ]
- apiGroups: ["storage.k8s.io"]
resources: ["*"]
verbs: ["get","watch","list" ]
- apiGroups: ["rbac.authorization.k8s.io"]
resources: ["*"]
verbs: ["get","watch","list" ]
- apiGroups: ["batch"]
resources: ["*"]
verbs: ["get","watch","list" ]
- apiGroups: ["apps"]
resources: ["*"]
verbs: ["get","watch","list" ]
- apiGroups: ["extensions"]
resources: ["*"]
verbs: ["get","watch","list" ] |
# cat charts/namespace/templates/clusterrolebinding.yaml
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
name: {{ .Release.Name }}-{{ .Values.namespace }}-binding
labels:
app: {{ .Release.Name }}
roleRef:
apiGroup: rbac.authorization.k8s.io
kind: ClusterRole
name: {{ .Release.Name }}-{{ .Values.namespace }}-role
subjects:
- kind: ServiceAccount
name: default
namespace: {{ .Values.namespace }} |
2、工作负载类
# cd basic
# helm create tomcat
# rm -rf charts/namespace/tomcat/* |
# cat charts/tomcat/values.yaml
# Default values for tomcat.
# This is a YAML-formatted file.
# Declare variables to be passed into your templates.
replicaCount: 1
version: v1
mfsdata: mfsdata
env:
-server -Xms1024M -Xmx1024M -XX:MaxMetaspaceSize=320m -XX:+HeapDumpOnOutOfMemoryError -XX:HeapDumpPath=/home/tomcat/jvmdump/
-Duser.timezone=Asia/Shanghai
-Drocketmq.client.logRoot=/home/tomcat/logs/rocketmqlog
image: repository: harbor.59iedu.com
pullPolicy: Always
service:
type: ClusterIP
port: 8080
dubboport: 20880
ingress:
enabled: false
annotations:
nginx.ingress.kubernetes.io/rewrite-target: /
path: /
hosts:
- www.test1.com
- www.test2.com
resources:
# We usually recommend not to specify default resources and to leave this as a conscious
# choice for the user. This also increases chances charts run on environments with little
# resources, such as Minikube. If you do want to specify resources, uncomment the following
# lines, adjust them as necessary, and remove the curly braces after 'resources:'.
limits:
cpu: 200m
memory: 0.2Gi
requests:
cpu: 100m
memory: 0.1Gi
nodeSelector: {}
tolerations:
- key: node.kubernetes.io/not-ready
operator: Exists
effect: NoExecute
tolerationSeconds: 300
- key: node.kubernetes.io/unreachable
operator: Exists
effect: NoExecute
tolerationSeconds: 300
affinity:
schedulerName: default-scheduler |
# cat charts/tomcat/templates/deployment.yaml
{{- $releaseName := .Release.Name -}}
apiVersion: apps/v1beta2
kind: Deployment
metadata:
name: {{ .Release.Name }}
namespace: {{ .Values.namespace }}
labels:
app: {{ .Values.namespace }}
version: {{ .Values.version }}
spec:
replicas: {{ .Values.replicaCount }}
selector:
matchLabels:
app: {{ .Release.Name }}
version: {{ .Values.version }}
template:
metadata:
labels:
app: {{ .Release.Name }}
version: {{ .Values.version }}
strategy:
type: RollingUpdate
rollingUpdate:
maxUnavailable: 25%
maxSurge: 25%
revisionHistoryLimit: 10
progressDeadlineSeconds: 600
spec:
volumes:
- name: hb-lan-server-xml
configMap:
name: hb-lan-server-xml
items:
- key: server.xml
path: server.xml
- name: vol-localtime
hostPath:
path: /etc/localtime
type: ''
- name: mfsdata
persistentVolumeClaim:
claimName: {{ .Values.mfsdata }}
- name: pp-agent
emptyDir: {}
imagePullSecrets:
- name: harborsecret
initContainers:
- name: init-pinpoint
image: 'harbor.59iedu.com/fjhb/pp_agent:latest'
command:
- sh
- '-c'
- cp -rp /var/lib/pp_agent/* /var/init/pinpoint
resources: {}
volumeMounts:
- name: pp-agent
mountPath: /var/init/pinpoint
terminationMessagePath: /dev/termination-log
terminationMessagePolicy: File
imagePullPolicy: Always
containers:
- name: {{ .Release.Name }}
image: {{ .Values.image }}
imagePullPolicy: {{ .Values.pullPolicy }}
terminationGracePeriodSeconds: 30
dnsPolicy: ClusterFirst
securityContext: {}
lifecycle:
preStop:
exec:
command: ["/bin/bash", "-c", "PID=`pidof java` && kill -SIGTERM $PID && while ps -p $PID > /dev/null; do sleep 1; done;"]
envFrom:
- configMapRef:
name: center-config
env:
- name: POD_IP
valueFrom:
fieldRef:
fieldPath: status.podIP
- name: CATALINA_OPTS
value: >-
-javaagent:/var/init/pinpoint/pinpoint-bootstrap.jar
-Dpinpoint.agentId=${POD_IP}
-Dpinpoint.applicationName=test1-{{ .Release.Name }}
- name: JAVA_OPTS
value: >-
{{ .Values.env }}
ports:
- name: http
containerPort: {{ .Values.service.port }}
protocol: TCP
livenessProbe:
tcpSocket:
port: {{ .Values.service.port }}
initialDelaySeconds: 60
timeoutSeconds: 2
periodSeconds: 10
successThreshold: 1
failureThreshold: 3
readinessProbe:
tcpSocket:
port: {{ .Values.service.dubboport }}
initialDelaySeconds: 120
timeoutSeconds: 3
periodSeconds: 10
successThreshold: 1
failureThreshold: 3
volumeMounts:
- name: hb-lan-server-xml
mountPath: /home/tomcat/conf/server.xml
subPath: server.xml
- name: vol-localtime
readOnly: true
mountPath: /etc/localtime
- name: mfsdata
mountPath: /mnt/mfs
- name: pp-agent
mountPath: /var/init/pinpoint
resources:
{{ toYaml .Values.resources | indent 12 }}
{{- with .Values.nodeSelector }}
nodeSelector:
{{ toYaml . | indent 8 }}
{{- end }}
{{- with .Values.affinity }}
affinity:
podAntiAffinity:
PreferredDuringSchedulingIgnoredDuringExecution:
- labelSelector:
matchExpressions:
- key: app
operator: In
values:
- {{ $releaseName }}
topologyKey: "kubernetes.io/hostname"
{{ toYaml . | indent 8 }}
{{- end }}
{{- with .Values.tolerations }}
tolerations:
{{ toYaml . | indent 8 }}
{{- end }} |
# cat charts/tomcat/templates/ingress.yaml
{{- if .Values.ingress.enabled -}}
{{- $servicePort := .Values.service.port -}}
{{- $ingressPath := .Values.ingress.path -}}
{{- $releaseName := .Release.Name -}}
apiVersion: extensions/v1beta1
kind: Ingress
metadata:
name: {{ .Release.Name }}
namespace: {{ .Values.namespace }}
labels:
app: {{ .Release.Name }}
version: {{ .Values.version }}
{{- with .Values.ingress.annotations }}
annotations:
{{ toYaml . | indent 4 }}
{{- end }}
spec:
{{- if .Values.ingress.tls }}
tls:
{{- range .Values.ingress.tls }}
- hosts:
{{- range .hosts }}
- {{ . }}
{{- end }}
secretName: {{ .secretName }}
{{- end }}
{{- end }}
rules:
{{- range .Values.ingress.hosts }}
- host: {{ . }}
http:
paths:
- path: {{ $ingressPath }}
backend:
serviceName: {{ $releaseName }}
servicePort: {{ $servicePort }}
{{- end }}
{{- end }} |
# cat charts/tomcat/templates/service.yaml
apiVersion: v1
kind: Service
metadata:
name: {{ .Release.Name }}
namespace: {{ .Values.namespace }}
labels:
app: {{ .Release.Name }}
version: {{ .Values.version }}
spec:
type: {{ .Values.service.type }}
ports:
- port: {{ .Values.service.port }}
targetPort: http
protocol: TCP
name: http
selector:
app: {{ .Release.Name }}
version: {{ .Values.version }} |

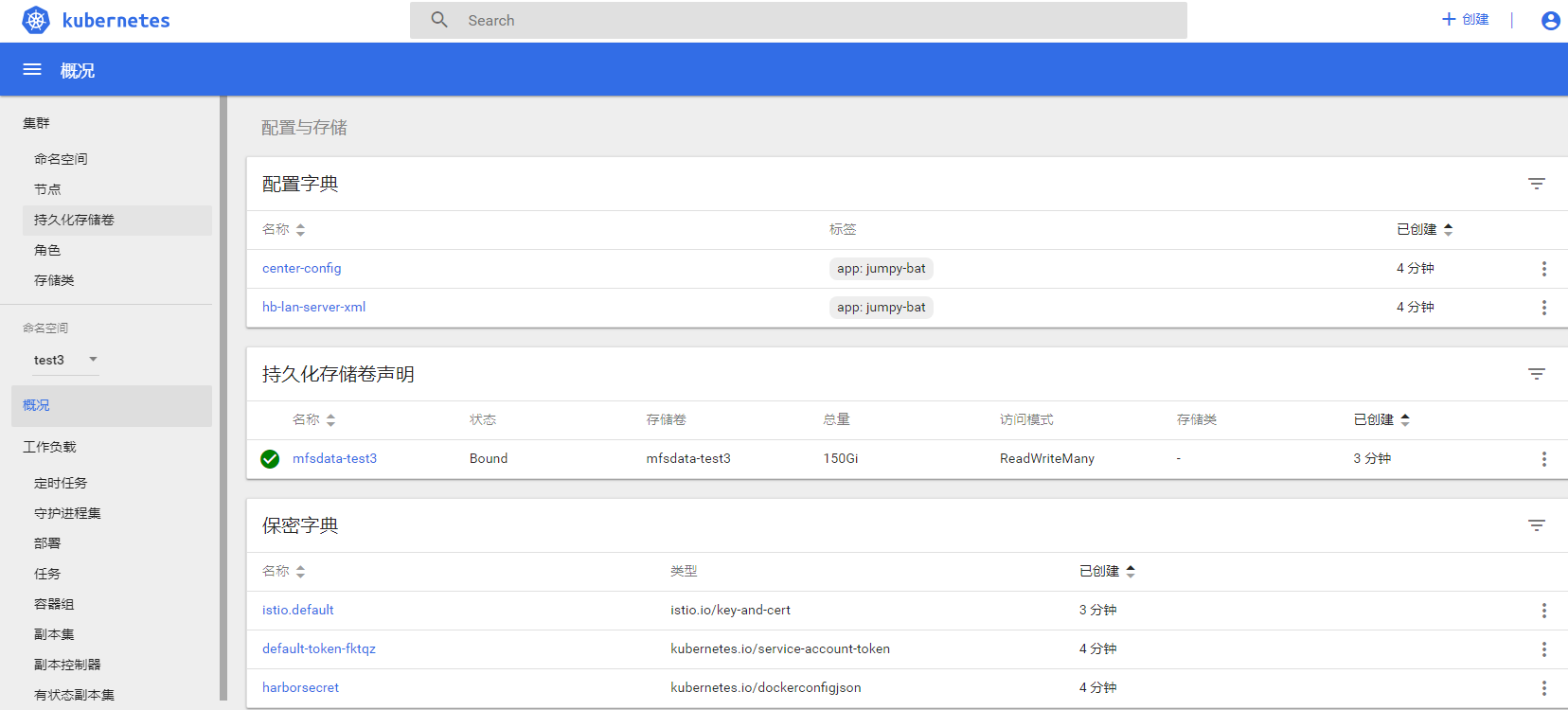

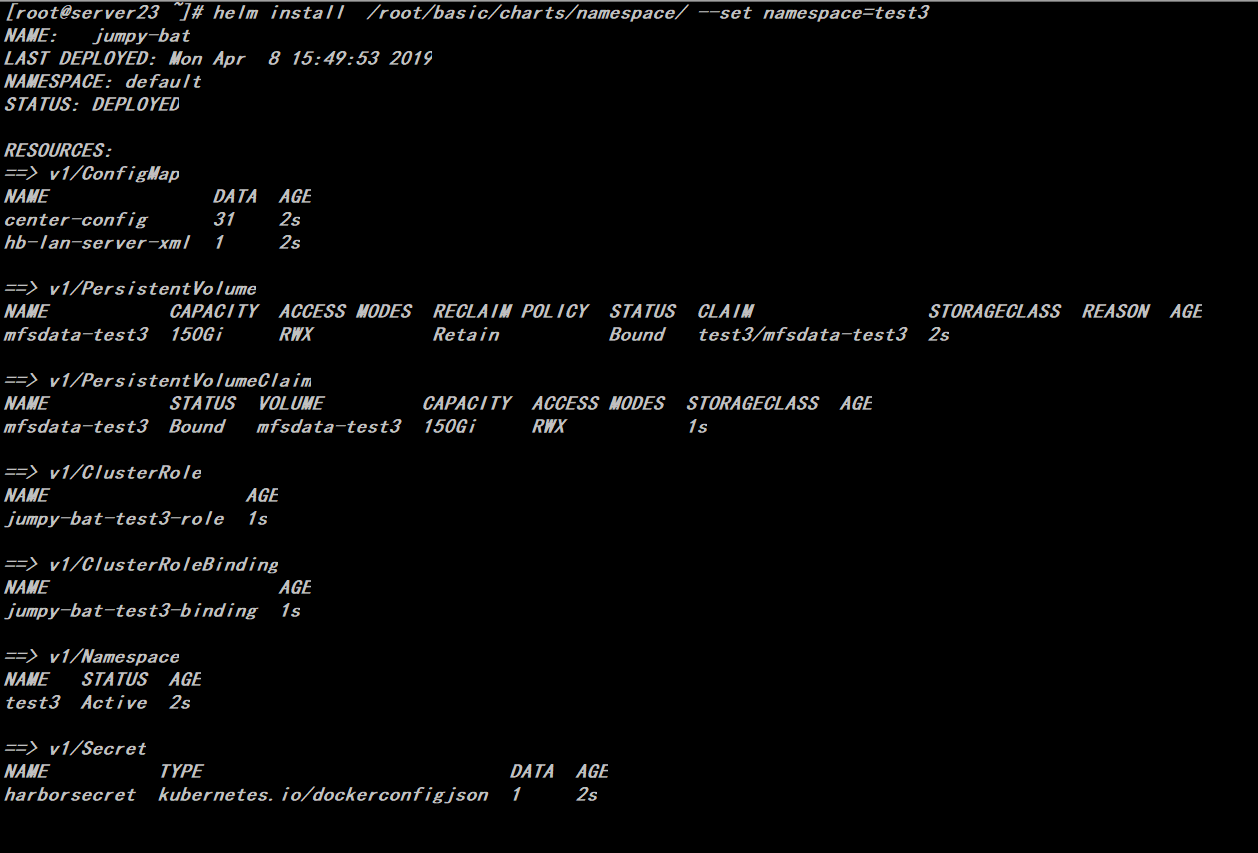

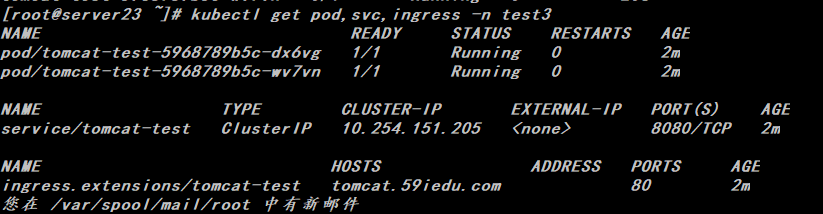

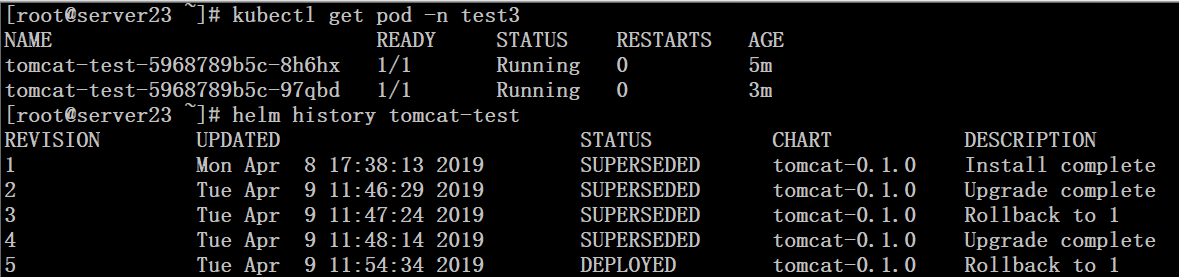

3、运行测试
# helm install --debug --dry-run /root/basic/charts/namespace/ \
--set namespace=test3

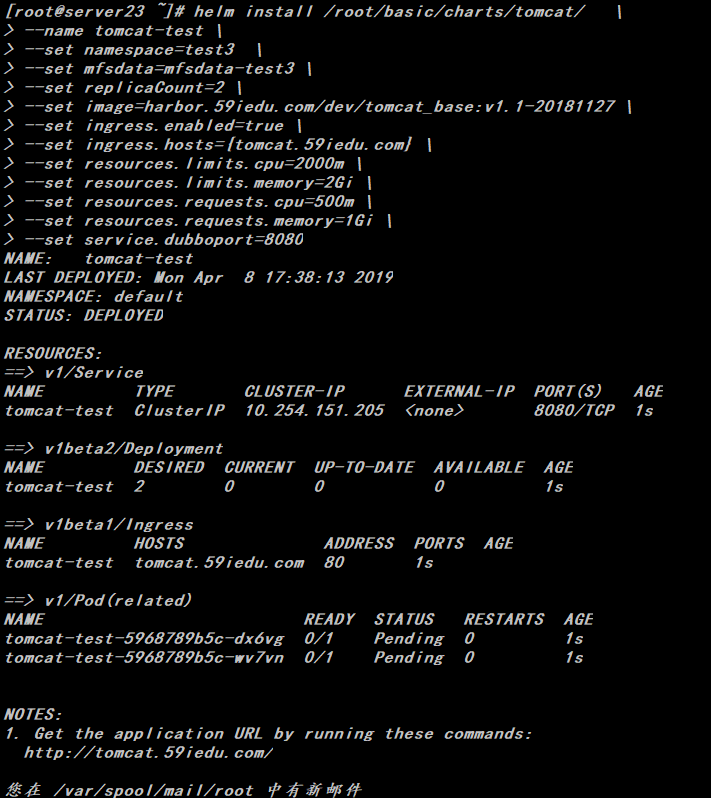

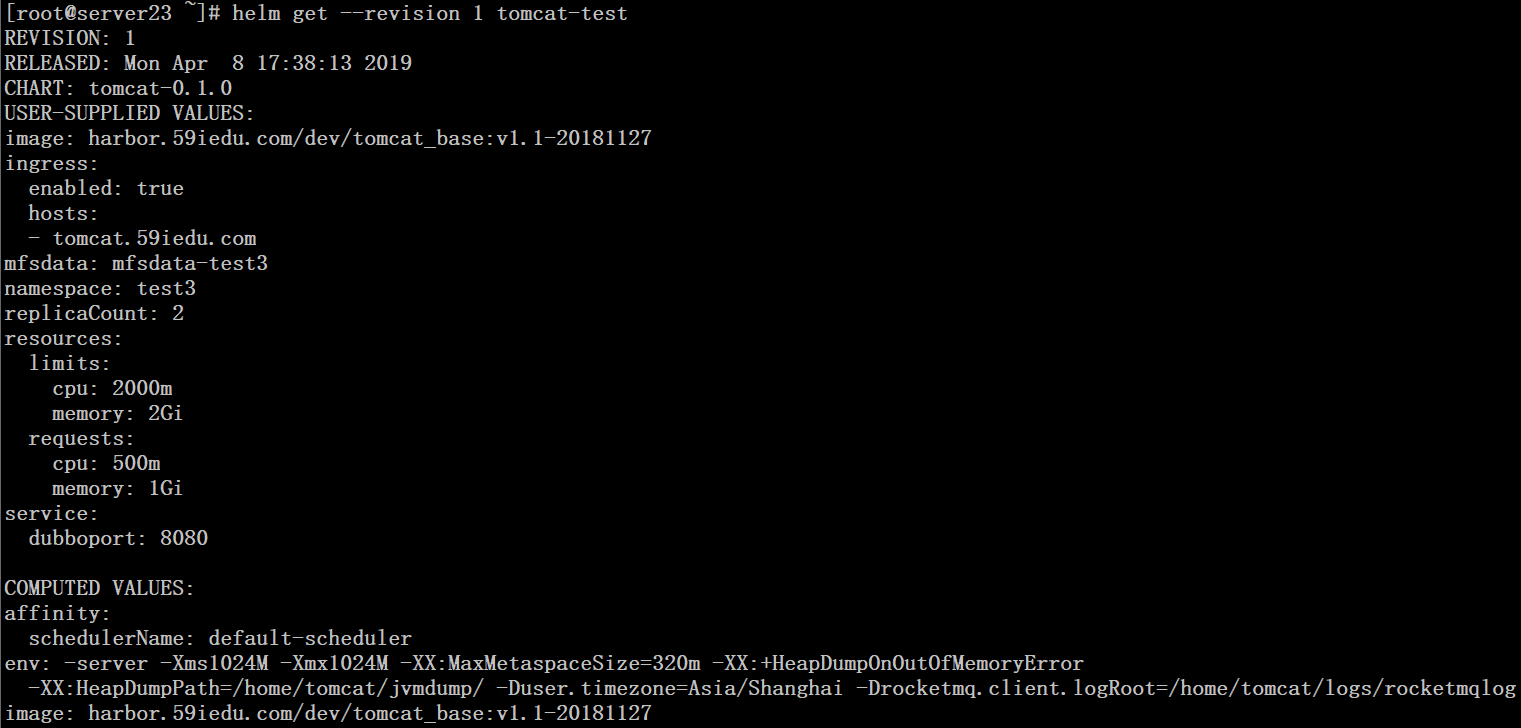

# helm install --debug --dry-run /root/basic/charts/tomcat/ \
--name tomcat-test \
--set namespace=test3 \
--set mfsdata=mfsdata-test3 \
--set replicaCount=2 \
--set image=harbor.59iedu.com/dev/tomcat_base:v1.1-20181127 \
--set ingress.enabled=true \

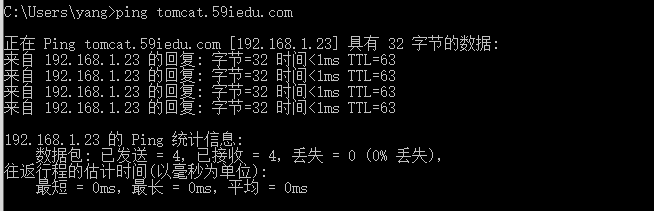

--set ingress.hosts={tomcat.59iedu.com} \
--set resources.limits.cpu=2000m \
--set resources.limits.memory=2Gi \
--set resources.requests.cpu=500m \
--set resources.requests.memory=1Gi \
--set service.dubboport=8080 |

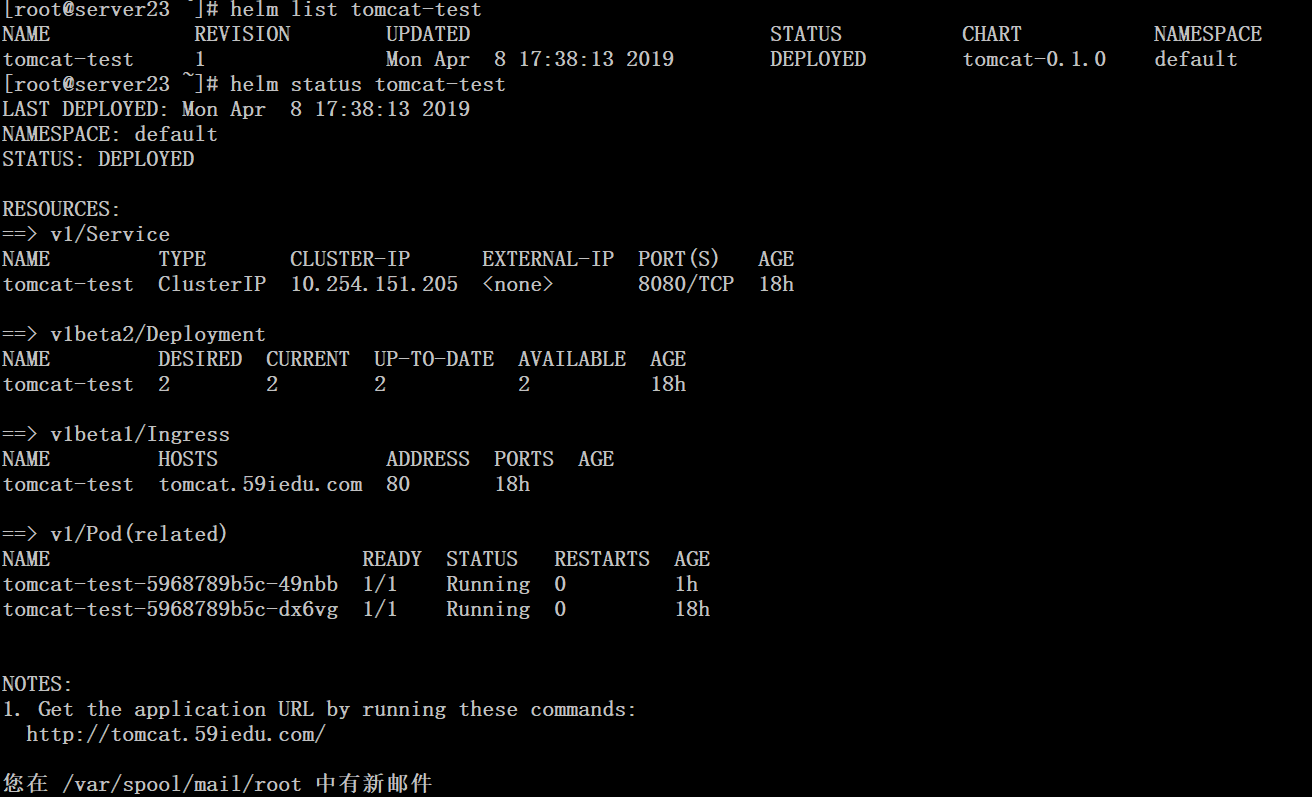

4、创建release
| # helm install /root/basic/charts/namespace/ --set namespace=test3 |
# helm install /root/basic/charts/tomcat/ \
--name tomcat-test \
--set namespace=test3 \
--set mfsdata=mfsdata-test3 \
--set replicaCount=2 \
--set image=harbor.59iedu.com/dev/tomcat_base:v1.1-20181127 \
--set ingress.enabled=true \
--set ingress.hosts={tomcat.59iedu.com} \
--set resources.limits.cpu=2000m \
--set resources.limits.memory=2Gi \
--set resources.requests.cpu=500m \
--set resources.requests.memory=1Gi \
--set service.dubboport=8080 |

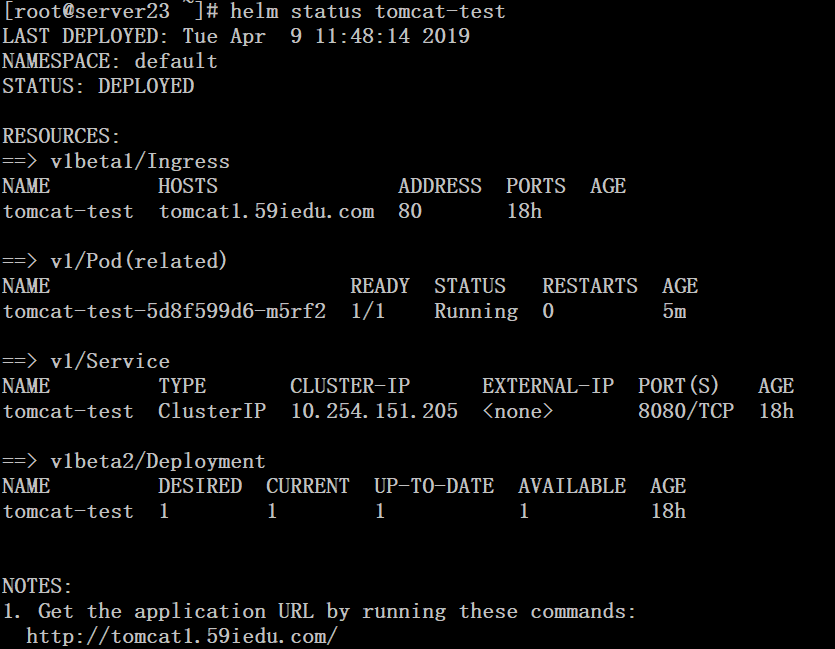

四、更新与回滚 # helm upgrade --install tomcat-test \
--values /root/basic/charts/tomcat/values.yaml \
--set namespace=test3 \
--set mfsdata=mfsdata-test3 \
--set replicaCount=1 \
--set image=harbor.59iedu.com/dev/tomcat_base:v1.1-20181127 \
--set ingress.enabled=true \
--set ingress.hosts={tomcat1.59iedu.com} \
--set resources.limits.cpu=200m \
--set resources.limits.memory=1Gi \
--set resources.requests.cpu=100m \
--set resources.requests.memory=0.5Gi \
--set service.dubboport=8080 \
/root/basic/charts/tomcat |
万一更新失败，可选择回滚
# helm rollback tomcat-test 1
# helm history tomcat-test
# helm get --revision 1 tomcat-test |
----------------------------
原文链接:https://blog.51cto.com/ylw6006/2375877
程序猿的技术大观园：www.javathinker.net
[这个贴子最后由 flybird 在 2020-03-15 11:03:16 重新编辑]
|
|
Java技术网站 → 『 Java开发技术 』 → 『 大数据处理和分布式架构专题 』 → 使用Helm简化K8S应用管理
2021-12-24 17:25:30
消息
查看
搜索
好友
邮件
复制
引用
IP: 已设置保密
